SSE - PLC - 12T24-72
SPECIFICATION
| Model | SSE-PLC-12T24-72 |
| Rope Range | 12mm to 24mm |
| Strand Flyer RPM | Max. 500 |
| Rope Flyer RPM | Max. 250 |
| Rope Lay | Z |
| Number of ply | 4 |
| Twist Range | 7 to 32 TPM |
| Twist Per Minute | Twice the Flyer Speed |
| Pay Of Package Size | 250mm Diameter x 300mm Traverse |
| Take Up Capacity | 65 kg (Approx) |
| Dimension ( LxWxH) | 33’ X 7’3” X 7’6” |
| Motor KW | 24 KW |
| Weight | 7450 kg (Approx) |
Key Features
- Feeding capstan mechanism.
- Anti twisting unit.
- HMI touch screen display with PLC control.
- Weight and meter set point.
- Denier calculation.
- TPM & RPM and twist factor set by display.
- A.C. drive fault alarm warning.
- 100 Reciepes storage memory.
- Production report daily, weekly, and monthly.
- Wi-Fi connectivity system for mobile.
Optional Features
- Electric wire hoist to remove final package.
- Direct Coling Head.
- Wi-Fi connectivity system for computer.

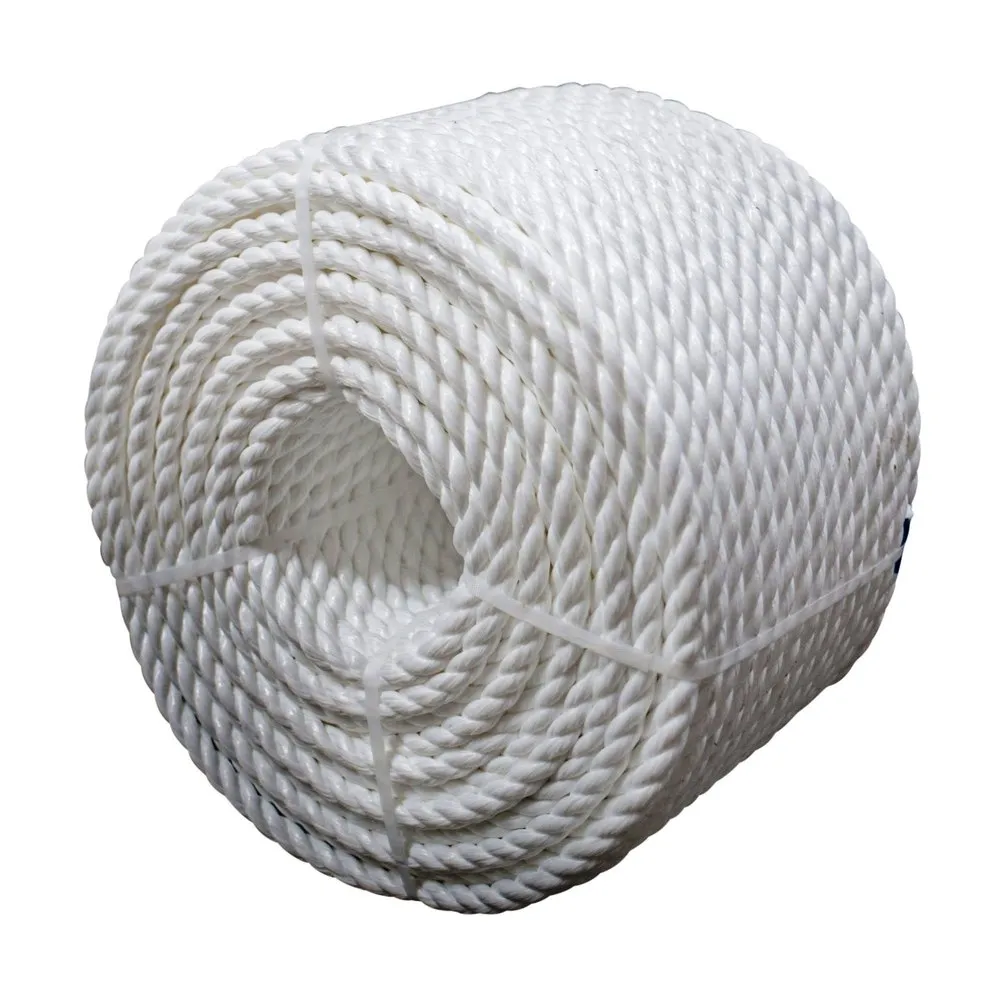

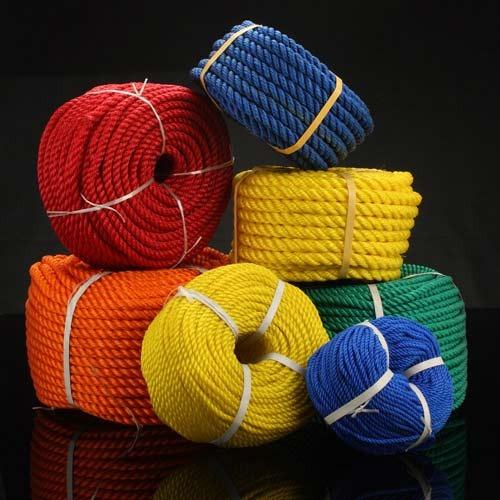

APPLICATION
PRODUCTION CAPACITY [ ON 100% EFFICIENCY ]
| Rope Size(mm) | Prod.(Kg/Hr) | TPM | RPM(Max) | Grm / Mtr |
| 12 | 87.22 | 22.51 | 250 | 65.45 |
| 14 | 138.41 | 19.31 | 250 | 89.09 |
| 16 | 205.94 | 16.95 | 250 | 116.36 |
| 18 | 264.20 | 15.05 | 225 | 147.27 |
| 20 | 363.37 | 13.51 | 225 | 181.82 |
| 22 | 483.31 | 12.29 | 225 | 220.00 |
| 24 | 486.56 | 11.30 | 175 | 261.82 |
MODEL
| Sr No. | Model No. | No Of Ply | Rope Size mm | No.Of Pay of Packages | Motor KW | Weight kg | Dimension LxWxH |
| 1 | SSE/12T24-60 | 3 | 12-24 | 20x3=60 | 24 | 6800kg | 33'x7'3"x7'6" |
| 2 | SSE/12T24-80 | 4 | 12-24 | 20x4=80 | 24 | 7850kg | 33'x7'4"x7'6" |
Note: Take up capacity and numbers of pay of pakages can be customized as per customer requirements. We reserve the right to change details/specification/equipment without any prior notice.
