SSE - 4T8-12
SPECIFICATION
| Model | SSE-4T8-12 |
| Rope Range | 4mm to 8mm |
| Strand Flyer RPM | Max. 1600 |
| Rope Flyer RPM | Max. 800 |
| Rope Lay | Z |
| Twist Range | 30 to 90 TPM |
| Twist Per Stand | Adjustable |
| Pay Of Package Size | 250mm Diameter x 250mm Traverse |
| Take Up Capacity | 20 kg (Approx) |
| Dimension ( LxWxH) | 17’1" X 7’3” X 7’6” |
| Motor KW | 7.5 KW |
| Weight | 2450 kg (Approx) |
Key Features
- Extra yarn tension arrangement to control the ballooning.
- Power transmission by timing belt.
- Simple but robust design & light weight rotating parts.
- Auto stop after yarn breakage to control wastage.
- Digital length counter meter.
- Door sensor.
- Take up output on M.S.Bobbin.
- Anti twisting unit.
- User friendly design.
- A.C frequency drive.
Optional Features
- Direct coling head.
- Increased take up capacity.
- Increased pay off package.

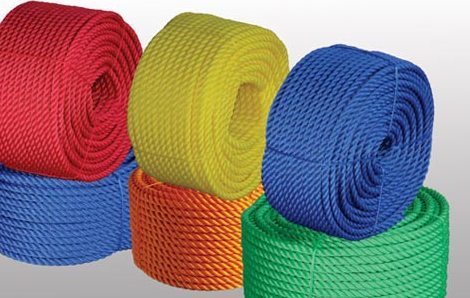

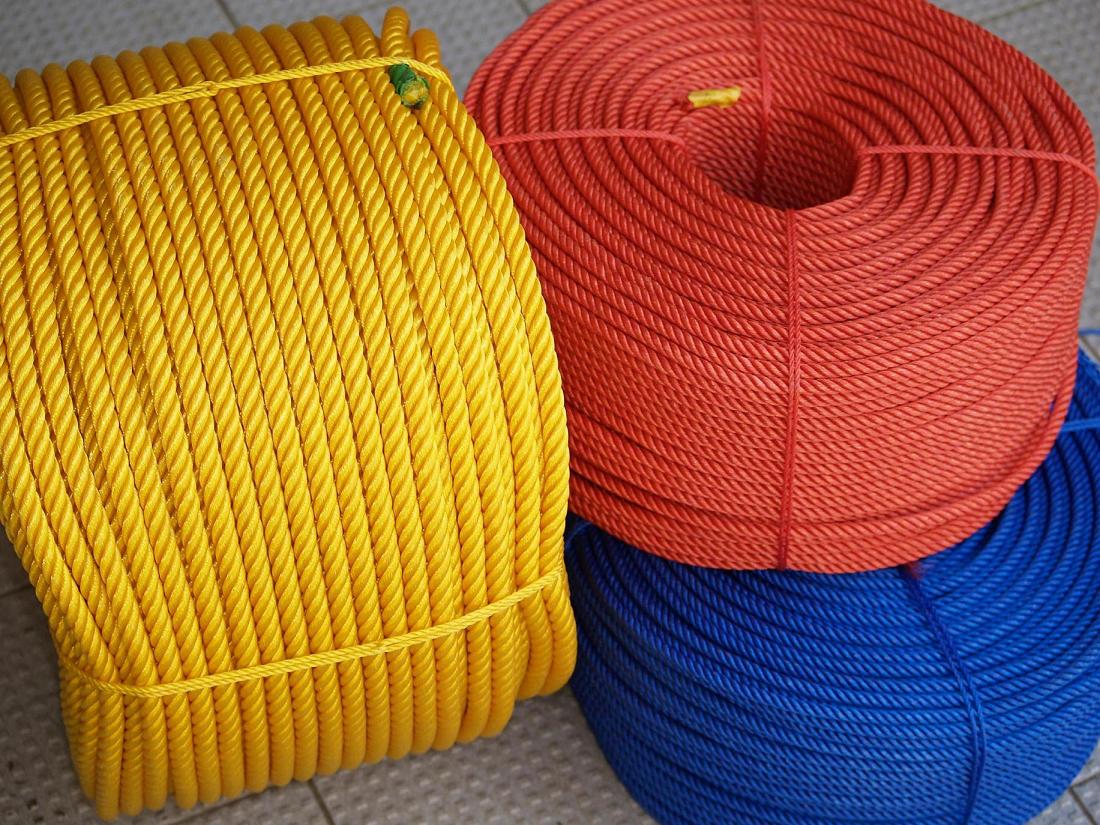

APPLICATION
PRODUCTION CAPACITY [ ON 100% EFFICIENCY ]
| Rope Size(mm) | Prod.(Kg/Hr) | TPM | RPM(Max) | Grm / Mtr |
| 4 | 10.38 | 67.18 | 800 | 7.27 |
| 5 | 20.56 | 53.06 | 800 | 11.36 |
| 6 | 28.18 | 48.75 | 700 | 16.36 |
| 8 | 61.99 | 33.78 | 600 | 29.09 |
MODEL
| Sr No. | Model No. | No Of Ply | Rope Size mm | No.Of Pay of Packages | Motor KW | Weight kg | Dimension LxWxH |
| 1 | SSE/4T8-12 | 3 | 4-8 | 4X3=12 | 7.5 | 2450kg | 17'1"X7'3"X7'6" |
| 2 | SSE/4T8-16 | 4 | 4-8 | 4x4=16 | 9.3 | 2700kg | 17'1"x7'3"x7'6" |
| 3 | SSE/4T8-18 | 3 | 4-8 | 6x3=18 | 9.3 | 2950kg | 18'x7'3"x7'6" |
| 4 | SSE/4T8-24 | 4 | 4-8 | 6x4=24 | 11 | 3150kg | 18'x7'3"x7'6" |
| 5 | SSE/4T8-24 | 3 | 4-8 | 8x3=24 | 11 | 3350kg | 20'x7'3"x7'6" |
| 6 | SSE/4T8-32 | 4 | 4-8 | 8x4=32 | 15 | 3450kg | 20'x7'3"x7'6" |
Note: Take up capacity and numbers of pay of pakages can be customized as per customer requirements. We reserve the right to change details/specification/equipment without any prior notice.
