SSE - 2V6-3
SPECIFICATION
| Model | SSE-2V6-3 |
| Rope Range | 2mm to 6mm |
| Strand Flyer RPM | Max. 2000 |
| Rope Flyer RPM | Max. 1000 |
| Rope Lay | Z |
| Twist Range | 40 to 130 TPM |
| Twist Per Minute | Twice the Flyer Speed |
| Pay Of Package Size | 250mm Diameter x 250mm Traverse |
| Take Up Capacity | 9 kg (Approx) |
| Dimension (LxWxH) | 10’8” x 4'9" x 5' |
| Motor KW | 3.7 KW |
| Weight | 995 kg (Approx) |
Key Features
- Extra yarn tension arrangement to control the ballooning.
- Simple but robust design & light weight rotating parts.
- Auto stop after yarn breakage to control wastage.
- Take up output on M.S.Bobbin.
- User friendly design.
Optional Features
- Digital length counter meter.
- A.C frequency drive.
- Door sensor.

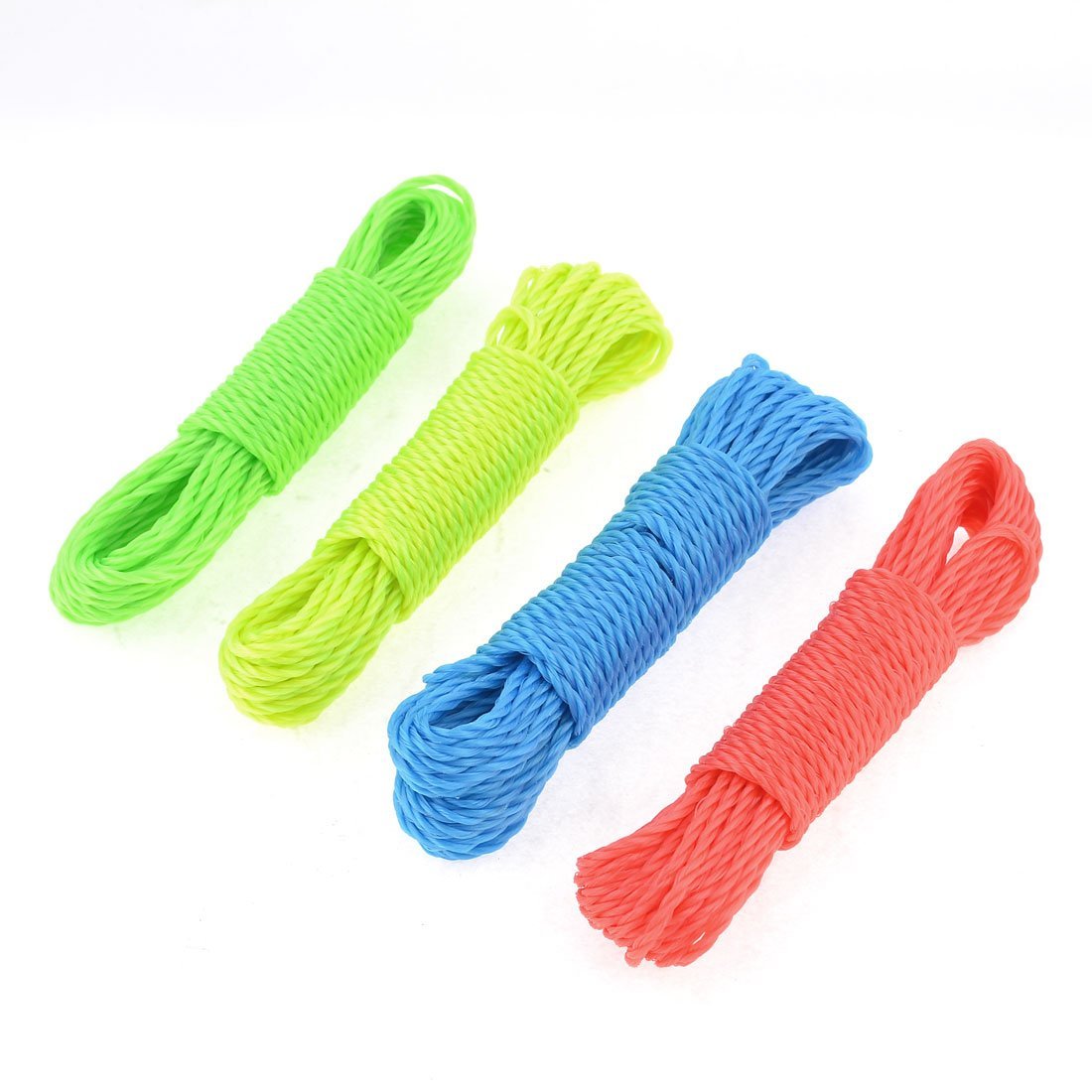

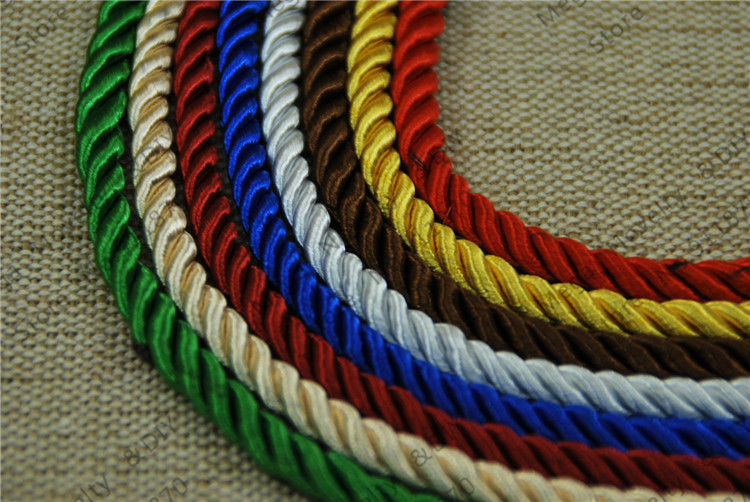

APPLICATION
PRODUCTION CAPACITY [ ON 100% EFFICIENCY ]
| Rope Size(mm) | Prod.(Kg/Hr) | TPM | RPM(Max) | Grm / Mtr |
| 2 | 3.19 | 90 | 1200 | 2 |
| 3 | 6.89 | 85 | 1200 | 4.09 |
| 4 | 15.58 | 67.18 | 1200 | 7.27 |
| 5 | 25.70 | 53.03 | 1000 | 11.36 |
| 6 | 36.24 | 48.75 | 900 | 16.36 |
MODEL
| SR NO. | MODEL NO. | NO OF PLY | ROPE SIZE MM | NO.OF PAY OF PACKAGES | MOTOR KW | WEIGHT KG | DIMENSION LxWxH |
| 1 | SSE/2V6-3 | 3 | 2-6 | 1x3=3 | 3.7 | 995kg | 10'8"x4'9"x5' |
| 2 | SSE/2V6-4 | 4 | 2-6 | 1x4=4 | 3.7 | 1095kg | 11'5"x5'5"x5'5" |
| 3 | SSE/2T6-3 | 3 | 2-6 | 1x3=3 | 5.5 | 1500kg | 11'6"x5'3"x5'6" |
| 4 | SSE/2T6-4 | 4 | 2-6 | 1x4=4 | 5.5 | 1650kg | 11'6"x5'3"x5'6 |
| 5 | SSE/2T6-6 | 3 | 2-6 | 2x3=6 | 7.5 | 1600kg | 14'1"x5'3"x5'6" |
| 6 | SSE/2T6-9 | 3 | 2-6 | 3X3=9 | 7.5 | 1850kg | 15'1"X5'3"X5'6" |
| 7 | SSE/2T6-8 | 4 | 2-6 | 2x4=8 | 7.5 | 2000kg | 15'1"x5'3"x5'6 |
Note: Take up capacity and numbers of pay of pakages can be customized as per customer requirements. We reserve the right to change details/specification/equipment without any prior notice.
