SSE - PLC - 16T32-78
SPECIFICATION
| Model | SSE-PLC-16T32-78 |
| Rope Range | 16mm TO 32mm |
| Strand Flyer RPM | Max. 400 |
| Rope Flyer RPM | Max. 200 |
| Rope Lay | Z |
| Twist Range | 6 to 25 TPM |
| Twist Per Minute | Twice the Flyer Speed |
| Pay Of Package Size | 250mm Diameter x 250mm Traverse |
| Take Up Capacity | 110 kg (Approx) |
| Dimension ( LxWxH) | 37’6” X 7’3” X 7’6” |
| Motor KW | 30 KW |
| Weight | 9,500 kg (Approx) |
Key Features
- Feeding capstan mechanism.
- Anti twisting unit.
- Direct coiling head.
- HMI touch screen display with PLC control.
- Weight and meter set point.
- Denier calculation.
- TPM & RPM and twist factor set by display.
- A.C. Drive fault alarm warning.
- 100 Reciepes storage memory.
- Production report daily, weekly, and monthly.
- Wi-Fi connectivity system for mobile.
Optional Features
- Electric wire hoist to remove final package.
- Wi-Fi connectivity system for computer.

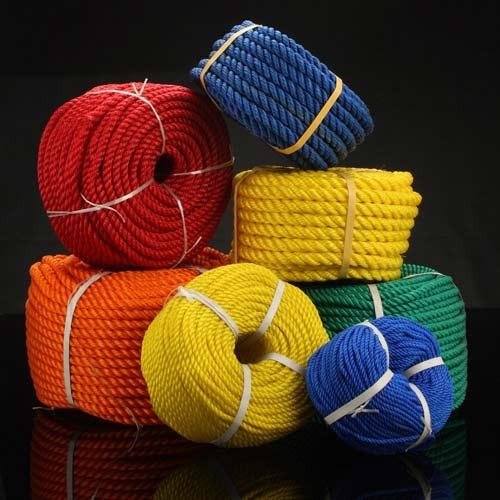

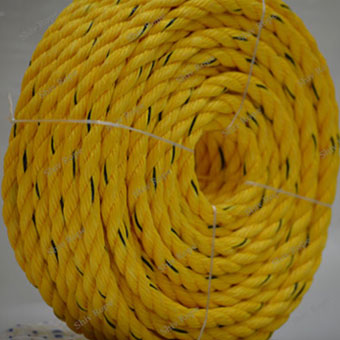

APPLICATION
PRODUCTION CAPACITY [ ON 100% EFFICIENCY ]
| Rope Size(mm) | Prod.(Kg/Hr) | TPM | RPM(Max) | Grm / Mtr |
| 16 | 164.69 | 16.95 | 200 | 116.36 |
| 18 | 234.77 | 15.05 | 200 | 147.27 |
| 20 | 242.18 | 13.51 | 150 | 181.82 |
| 22 | 322.21 | 12.29 | 150 | 220.00 |
| 24 | 416.92 | 11.30 | 150 | 261.82 |
| 26 | 423.29 | 10.45 | 120 | 307.27 |
| 28 | 443.02 | 9.65 | 100 | 356.36 |
| 30 | 544.17 | 9.02 | 100 | 409.09 |
| 32 | 660.75 | 8.45 | 100 | 465.45 |
MODEL
| Sr No. | Model No. | No Of Ply | Rope Size mm | No.Of Pay of Packages | Motor KW | Weight kg | Dimension LxWxH |
| 1 | SSE/16T32-78 | 3 | 16-32 | 26x3=78 | 35 | 9500kg | 37'6"x7'3"x7'6" |
| 2 | SSE/16T32-104 | 4 | 16-32 | 26x4=104 | 35 | 10250kg | 37'6"x7'3"x7'6" |
Note: Take up capacity and numbers of pay of pakages can be customized as per customer requirements. We reserve the right to change details/specification/equipment without any prior notice.
